Steel Strip Heat Treatment Production Line
Overview Q&A Download
Ledi Laser · Customized
Cutting · Receiving · Stacking
Fully automated steel strip laser cutting
Leading in sales for 6 consecutive years!
Saw blade cutting
Sales proportion 80%!
Putty knife and trowel cutting
Sales proportion 70%!
Knife cutting
Sales proportion 60%!
Choice of over 800 customers
More favored!
Applicable: Carbon Steel, Stainless Steel, Manganese Steel
Steel strip size： thickness 1.5-4.2mm，width 100-600mm
Part size：thickness 1.5-4.2mm，length 300-1500mm，width 100-600mm.
Customized Production Lines

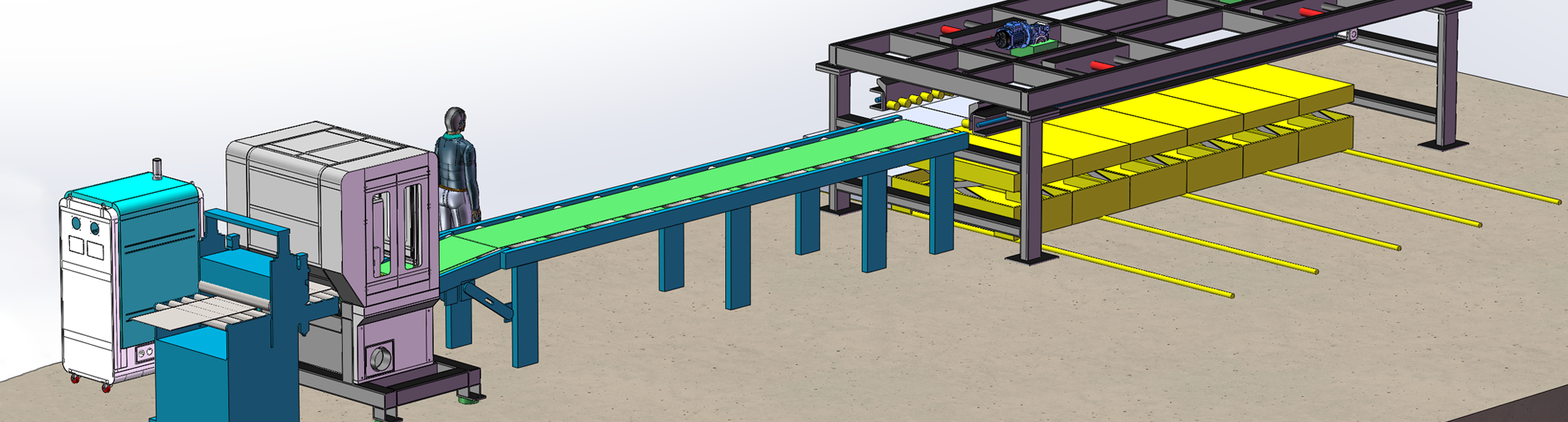

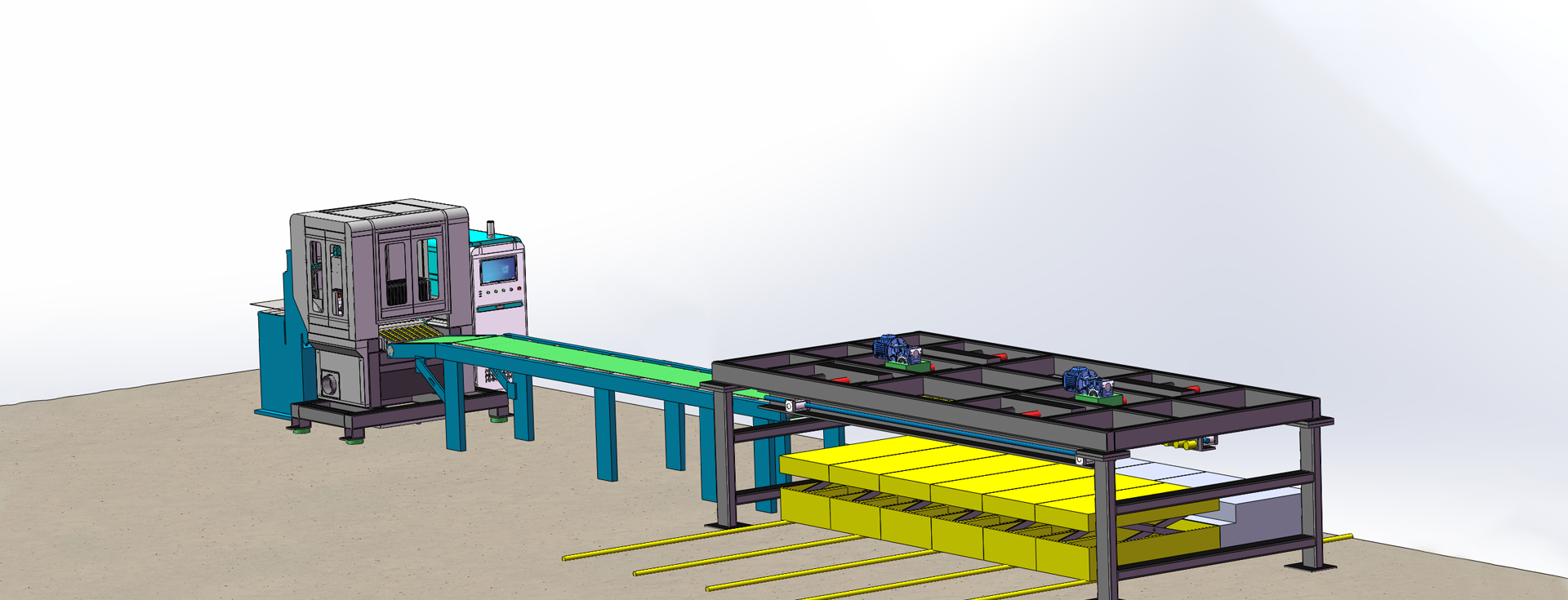

The heat treatment line has maximum speed of 2m/min. The strip steel runs continuously, being transported from 1.5 meters height to a 15 meters away position on the ground for laser cutting.

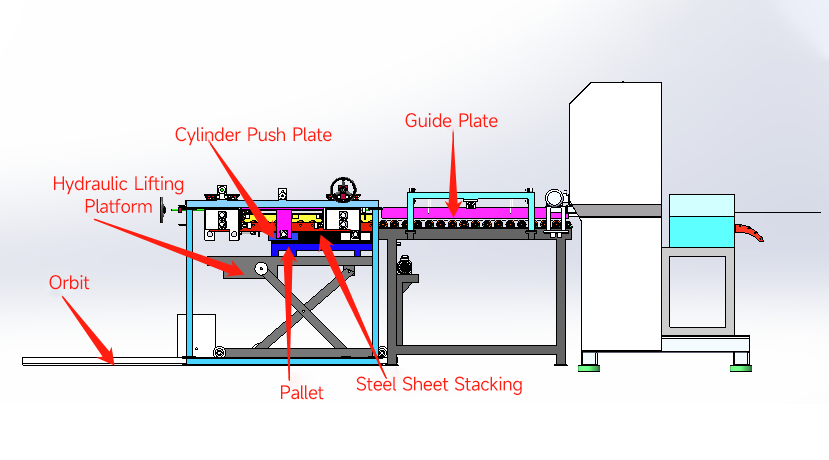

Customized Rollers/Pallet
Floor rollers, pallet discharge to both sides. Stacking height 400-500 mm.
Recommended laser power: 3000W; cutting area X-axis: 600 mm.

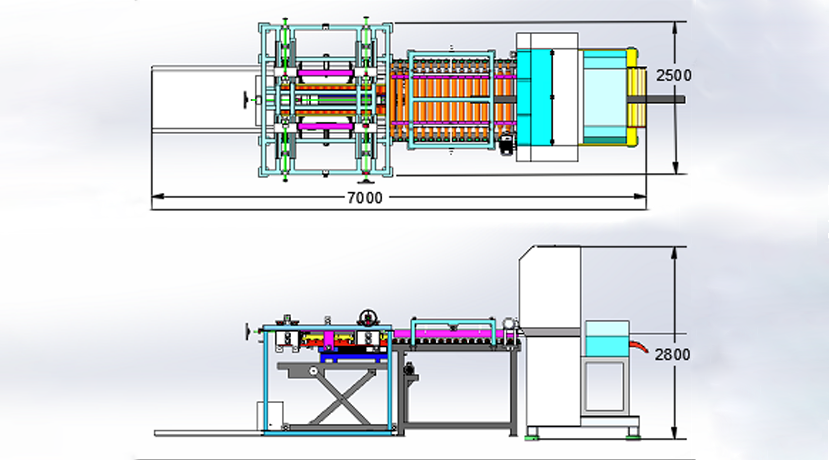

Dimension
Self-developed and designed, with full-process assembly and debugging.

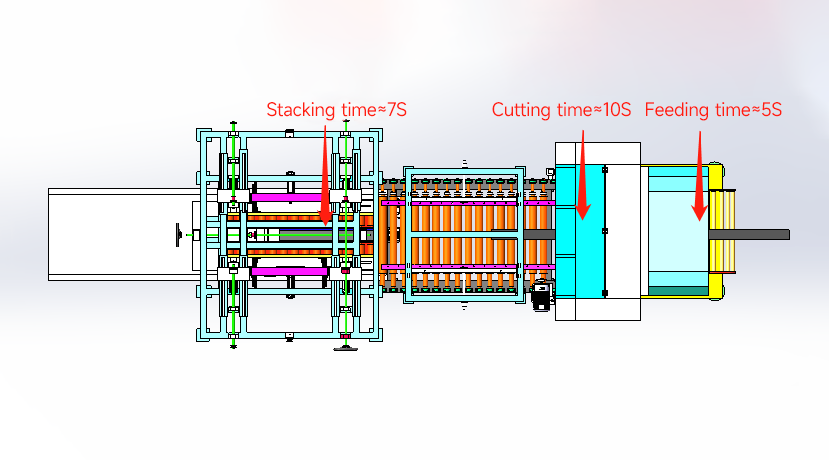

Workflow

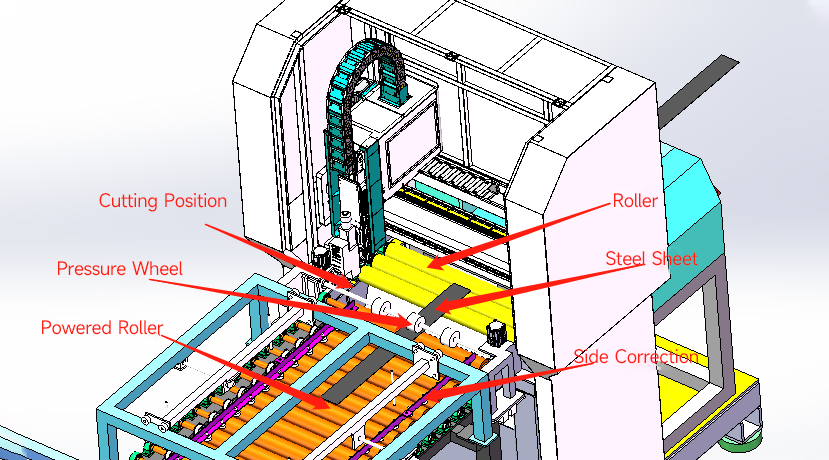

Steel strip heat treatment --- conveying and buffer zone --- steel strip feeding mechanism --- correction mechanism --- laser cutting mechanism --- workpiece conveying mechanism --- receiving and stacking mechanism.
Tailor-made according to your industry requirements
Customize my device
Learn more about the product
Free sample making
Exclusive consultant consultation
Get a quote
Make an appointment for sample making and experience the meticulous craftsmanship of Lideal Laser.
